技術參數
|

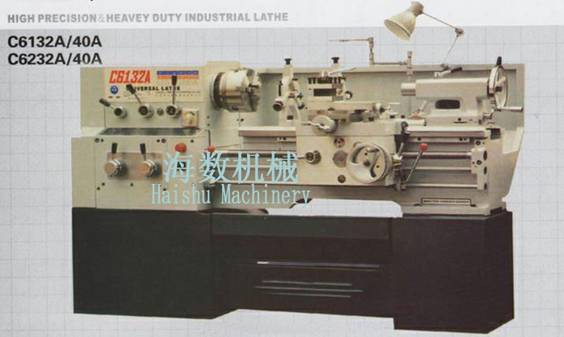

Model |
C6132A |
C6232A |
C6140A |
C6240A |
|
Center height |
180mm |
180mm |
202mm |
202mm |
|
Max. swing diameter over bed |
360mm |
360mm |
400mm |
400mm |
|
Max. swing diameter over carriage |
200mm |
200mm |
245mm |
245mm |
|
馬鞍槽內回轉直徑 |
540mm |
585mm | ||
|
馬鞍槽有效長度 |
200mm |
200mm | ||
|
大加工長度(兩頂尖中心距) |
750mm、1000mm | |||
|
床身寬度 |
330mm | |||
|
主軸通孔直徑 |
46mm/52mm | |||
|
主軸孔錐度 |
MT No.6 | |||
|
主軸轉速范圍 |
22~1600r/min | |||
|
橫刀架短行程 |
240mm | |||
|
小刀架短行程 |
140mm | |||
|
尾座大行程 |
130mm | |||
|
尾座錐度 |
MT No.4 | |||
|
主電機功率 |
3/4kw | |||
|
公制螺紋種數范圍 |
30種 0.4~20mm | |||
|
英制螺紋 |
35種 80~1T.P.L | |||
|
模數螺紋 |
0.25~10 M.P. | |||
|
徑節螺紋 |
160~3 D.P. | |||
|
進給量級數 |
138 | |||
|
縱向進給范圍 |
0.04~2.15mm | |||
|
橫向進給范圍 |
0.02~1.08mm | |||
|
機床凈重 |
1300Kg/1400Kg | |||
|
機床外形尺寸（長×寬×高） |
2290/2575×1100×1465mm | |||
標準附件：
1、照明 2、冷卻 3、三爪+接盤 4、變徑套 5、油槍 6、扳手 7、擋屑板
特殊附件：
1、撥盤 2、四爪卡盤+接盤 3、花盤 4、中心架 5、跟刀架
